Specifications:(unit: mm)
| Model | Size(mm) | Rated Voltage |
Fre- quency |
Current | Power | Speed | Max.Static Pressure |
Maximun Air Flow |
Noise Level |
Weight | |||
| A | B | C | VDC | Hz | A | W | RPM | mmAq | M3/min | CFM | dBA | g | |
| ZDH0409X-A | 98 | 108 | 160 | 120 | 50/60 | 0.14/0.12 | 10/9 | 2700/2300 | 1.7/1.3 | 0.6/0.7 | 21/24 | 29/33 | 520 |
| ZDH0409X-A | 230 | 50/60 | 0.09/0.07 | 11/9 | 2700/3000 | 1.7/1.3 | 0.6/0.7 | 21/24 | 29/33 | ||||
| ZDH0415X-A | 160 | 170 | 222 | 120 | 50/60 | 0.15/0.13 | 11/10 | 2600/2800 | 1.9/2.4 | 1.0/1.1 | 35/39 | 30/34 | 560 |
| ZDH0415X-A | 230 | 50/60 | 0.09/0.07 | 11/9 | 2600/2800 | 1.9/2.4 | 1.0/1.1 | 35/39 | 30/34 | ||||
| ZDH0419X-A | 198 | 208 | 260 | 120 | 50/60 | 0.15/0.13 | 10/9 | 2500/2400 | 2.0/2.6 | 1.4/1.3 | 49/46 | 33/31 | 600 |
| ZDH0419X-A | 230 | 50/60 | 0.09/0.07 | 12/11 | 2500/2400 | 2.0/2.6 | 1.4/1.3 | 49/46 | 33/31 | ||||
● Dimensions Drawing

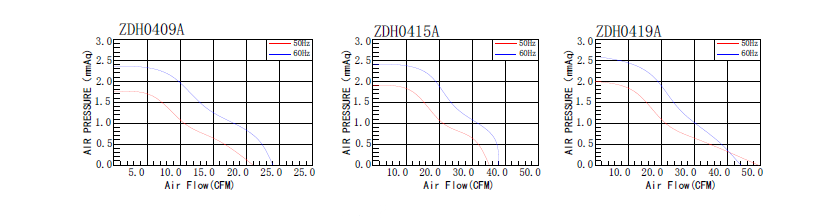

● Characteristic Curves
