Specifications: (unit: mm)
| Model | Size(mm) | Rated Voltage |
Current | Speed | Max.Static Pressure |
Maximun Air Flow |
Noise Level |
Weight | |||
| A | B | C | VDC | A | RPM | mmAq | M3/hr | CFM | dBA | g | |
| ZDH2515X-A | 160 | 176 | 185 | 12 | 0.11 | 3400 | 1.0 | 0.35 | 12 | 39 | 100 |
● Dimensions Drawing

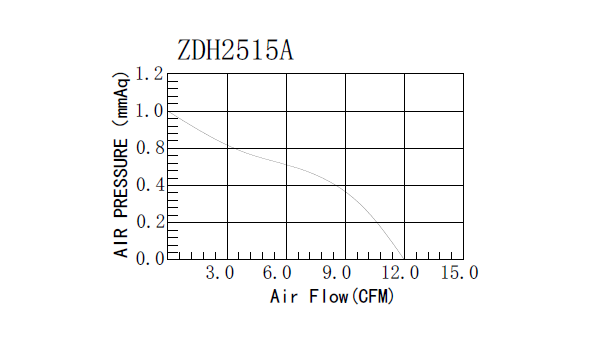

● Characteristic Curves
