Specifications:(unit: mm)
| Model | Size(mm) | Rated Voltage |
Fre- quency |
Current | Power | Speed | Max.Static Pressure |
Maximun Air Flow |
Noise Level |
Weight | |||
| A | B | C | VDC | Hz | A | W | RPM | mmAq | M3/min | CFM | dBA | g | |
| ZAH0309X-A | 98 | 108 | 160 | 120 | 50/60 | 0.11/0.19 | 8/7 | 2500/2900 | 0.8/1.1 | 0.4/0.5 | 14/17 | 21/24 | 390 |
| ZAH0309X-A | 230 | 50/60 | 0.07/0.05 | 8/7 | 2500/2900 | 0.8/1.1 | 0.4/0.5 | 14/17 | 21/24 | ||||
| ZAH0315X-A | 160 | 170 | 222 | 120 | 50/60 | 0.14/0.12 | 9/8 | 2700/3100 | 0.9/1.2 | 0.7/0.8 | 24/28 | 27/30 | 520 |
| ZAH0315X-A | 230 | 50/60 | 0.09/0.07 | 10/9 | 2700/3100 | 0.9/1.2 | 0.7/0.8 | 24/28 | 27/30 | ||||
| ZAH0319X-A | 198 | 208 | 260 | 120 | 50/60 | 0.14/0.12 | 9/8 | 2700/3100 | 1.0/1.3 | 0.9/1.0 | 32/35 | 27/30 | 540 |
| ZAH0319X-A | 230 | 50/60 | 0.09/0.07 | 11/9 | 2700/3100 | 1.0/1.3 | 0.9/1.0 | 32/35 | 27/30 | ||||
| ZAH0329X-A | 300 | 310 | 362 | 120 | 50/60 | 0.20/0.17 | 15/13 | 2700/3100 | 1.4/1.7 | 1.5/1.7 | 53/60 | 32/34 | 670 |
| ZAH0329X-A | 230 | 50/60 | 0.09/0.07 | 12/11 | 2700/3100 | 1.4/1.7 | 1.5/1.7 | 53/60 | 32/34 | ||||
● Dimensions Drawing

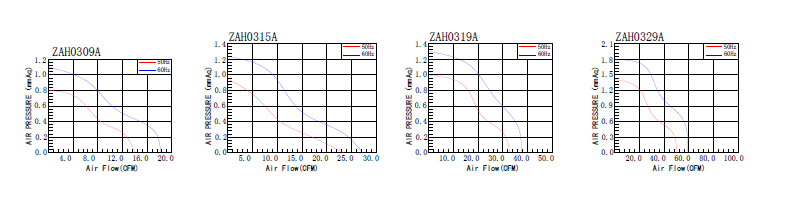

● Characteristic Curves
