75X75X25-Blower

DC Axial-Flow Fan Motor

Material: Frame And Impeller:Thermal Plastic UL 94-0

Lead Wires:UL Type

RED Wire Positive(+)

Black Wire Negative(-)

Insulation Resistance: 10MΩ Or Over With a DC250V Megger

Dielectric Withstand Voltage: AC500V 1S

Allowable Ambient Temperature Range: -10℃～+70℃(Operating) -40℃～+70℃(Storage)

Description
Reviews (0)

Specifications: (unit: mm)

Model	Bearing Type	Rated Voltage	Operation Voltage	Current	Speed	Air Flow	Static Pressure	Noise Level	Weight
Model	Bearing Type	VDC	VDC	A	RPM	CFM	mmH₂0	dBA	g
ZBH7525S	Sleeve	12	10.8～13.2	0.35	3500	11.00	13.7	43	124
ZBM7525S				0.26	3000	9.20	10.8	40
ZBL7525S				0.22	2500	8.50	8.2	36
ZBH7525B	Ball			0.35	3500	11.00	13.7	43
ZBM7525B				0.26	3000	9.20	10.8	40
ZBL7525B				0.22	2500	8.50	8.2	36
ZBH7525S	Sleeve	24	21.6～26.4	0.23	3500	11.00	13.7	43
ZBM7525S				0.14	3000	9.20	10.8	40
ZBL7525S				0.11	2500	8.50	8.2	36
ZBH7525B	Ball			0.23	3500	11.00	13.7	43
ZBM7525B				0.14	3000	9.20	10.8	40
ZBL7525B				0.11	2500	8.50	8.2	36

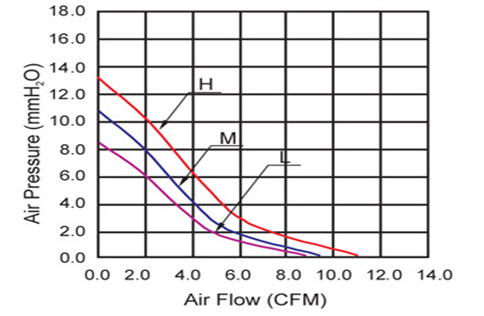

● Characteristic Curves

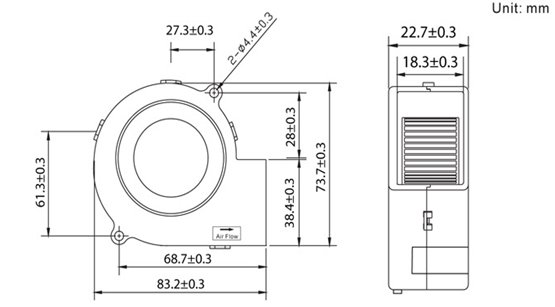

● Dimensions Drawing
