75X75X15

75X75X15 - Image 2

75X75X15 - Image 3

75X75X15

DC Axial-Flow Fan Motor

Material: Frame And Impeller:Thermal Plastic UL 94-0

Lead Wires:UL Type

RED Wire Positive(+)

Black Wire Negative(-)

Insulation Resistance: 10MΩ Or Over With a DC250V Megger

Dielectric Withstand Voltage: AC500V 1S

Allowable Ambient Temperature Range: -10℃～+70℃(Operating) -40℃～+70℃(Storage)

Description
Reviews (0)

Specifications: (unit: mm)

Model	Bearing Type	Rated Voltage	Operation Voltage	Current	Speed	Air Flow	Static Pressure	Noise Level	Weight
Model	Bearing Type	VDC	VDC	A	RPM	CFM	mmH₂0	dBA	g
ZDH7515S	Sleeve	5	4.5～5.5	0.35	3500	8.68	10.56	32.60	46
ZDM7515S				0.27	3000	7.44	9.05	27.94
ZDL7515S				0.18	2500	6.20	7.54	23.28
ZDH7515B	Ball			0.35	3500	8.68	10.56	32.60
ZDM7515B				0.27	3000	7.44	9.05	27.94
ZDL7515B				0.18	2500	6.20	7.54	23.28
ZDH7515S	Sleeve	12	10.8～13.2	0.20	3500	8.68	10.56	32.60
ZDM7515S				0.15	3000	7.44	9.05	27.94
ZDL7515S				0.10	2500	6.20	7.54	23.28
ZDH7515B	Ball			0.20	3500	8.68	10.56	32.60
ZDM7515B				0.15	3000	7.44	9.05	27.94
ZDL7515B				0.10	2500	6.20	7.54	23.28

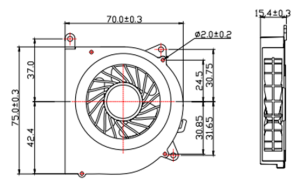

● Dimensions Drawing

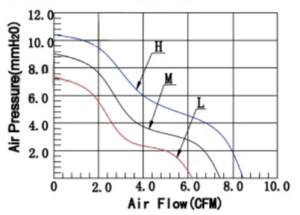

● Characteristic Curves
