C Axial-Flow Fan Motor
Material: Frame And Impeller:Thermal Plastic UL 94-0
Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
Insulation Resistance: 10MΩ Or Over With a DC250V Megger
Dielectric Withstand Voltage: AC500V 1S
Allowable Ambient Temperature Range: -10℃～+70℃(Operating) -40℃～+70℃(Storage)
Specifications: (unit: mm)
| Model | Bearing Type |
Rated Voltage |
Operation Voltage |
Current | Speed | Air Flow |
Static Pressure |
Noise Level |
Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| ZBH5008S | Sleeve | 5 | 4.5～5.5 | 0.24 | 6000 | 4.20 | 22.50 | 38 | 28 |
| ZBM5008S | 0.20 | 5000 | 3.50 | 14.00 | 32 | ||||
| ZBL5008S | 0.16 | 4000 | 2.60 | 8.00 | 26 | ||||
| ZBH5008S | Sleeve | 12 | 10.8～13.2 | 0.25 | 6000 | 4.20 | 22.50 | 38 | |
| ZBM5008S | 0.17 | 5000 | 3.50 | 14.00 | 32 | ||||
| ZBL5008S | 0.10 | 4000 | 2.60 | 8.00 | 26 |
● Dimensions Drawing

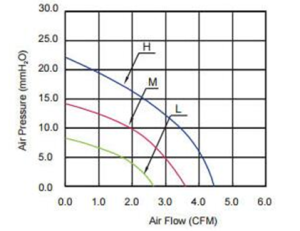

● Characteristic Curves
