Specifications: (unit: mm)
| Model | Bearing Type |
Rated Voltage |
Operation Voltage |
Current | Speed | Air Flow |
Static Pressure |
Noise Level |
Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| ZBH5015S | Sleeve | 5 | 4.5～5.5 | 0.30 | 4200 | 3.92 | 9.05 | 35.00 | 25 |
| ZBM5015S | 0.23 | 3800 | 3.42 | 7.22 | 32.77 | ||||
| ZBL5015S | 0.17 | 3500 | 3.00 | 5.50 | 31.00 | ||||
| ZBH5015B | Ball | 0.30 | 4200 | 3.92 | 9.05 | 35.00 | |||
| ZBM5015B | 0.23 | 3800 | 3.42 | 7.22 | 32.77 | ||||
| ZBL5015B | 0.17 | 3500 | 3.00 | 5.50 | 31.00 | ||||
| ZBH5015S | Sleeve | 12 | 10.8～13.2 | 0.16 | 4200 | 3.92 | 9.05 | 35.00 | |
| ZBM5015S | 0.12 | 3800 | 3.42 | 7.22 | 32.77 | ||||
| ZBL5015S | 0.08 | 3500 | 3.00 | 5.50 | 31.00 | ||||
| ZBH5015B | Ball | 0.16 | 4200 | 3.92 | 9.05 | 35.00 | |||
| ZBM5015B | 0.12 | 3800 | 3.42 | 7.22 | 32.77 | ||||
| ZBL5015B | 0.08 | 3500 | 3.00 | 5.50 | 31.00 |
● Dimensions Drawing

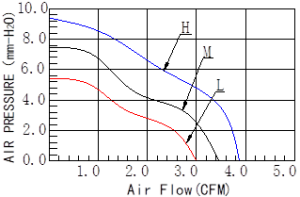

● Characteristic Curves
