DC Axial-Flow Fan Motor
Material: Frame And Impeller:Thermal Plastic UL 94-0
Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
Insulation Resistance: 10MΩ Or Over With a DC250V Megger
Dielectric Withstand Voltage: AC500V 1S
Allowable Ambient Temperature Range: -10℃～+70℃(Operating) -40℃～+70℃(Storage)
Specifications: (unit: mm)
| Model | Bearing Type |
Rated Voltage |
Operation Voltage |
Current | Speed | Air Flow |
Static Pressure |
Noise Level |
Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| ZBH4020S | Sleeve | 5 | 4.5～5.5 | 0.26 | 5300 | 3.50 | 6.80 | 29.60 | 24 |
| ZBM4020S | 0.20 | 4200 | 2.90 | 4.90 | 25.50 | ||||
| ZBL4020S | 0.14 | 3000 | 2.20 | 3.00 | 21.40 | ||||
| ZBH4020S | 12 | 10.8～13.2 | 0.15 | 6000 | 4.10 | 8.50 | 34.80 | ||
| ZBM4020S | 0.11 | 5300 | 3.50 | 6.80 | 29.60 | ||||
| ZBL4020S | 0.07 | 4200 | 2.90 | 4.90 | 25.50 |
● Dimensions Drawing

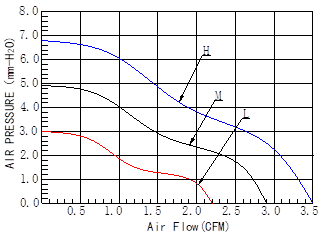

● Characteristic Curves
