AC Axial-Flow Fan Motor
● General Specifications
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a DC500V Megger
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)
Specifications:(unit: mm)
| Model | Bearing Type |
Rated Voltage |
Fre- quency |
Current | Power | Speed | Noise Level |
Air Flow | Static Pressure |
Weight |
|
| VDC | Hz | A | W | RPM | dBA | M3/hr | CFM | mmH20 | g | ||
| ZAH2260B | Ball | 220-240 | 50/60 | 0.25/0.26 | 50/60 | 2800/3200 | 59/62 | 730/824 | 430/485 | 24/18 | 1540 |
| ZAH2260B | 100-125 | 50/60 | 0.42/0.46 | 50/56 | 2800/3200 | 59/62 | 730/824 | 430/485 | 24/18 | ||
● Dimensions Drawing

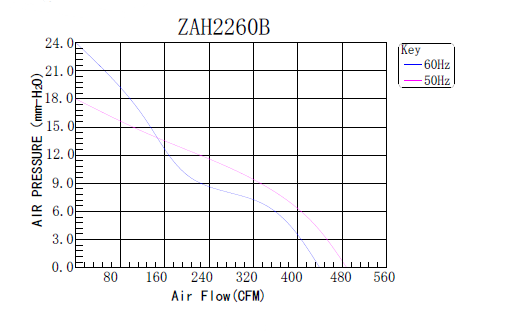

● Characteristic Curves
