DC Axial-Flow Fan Motor
Material:Frame And Impeller:Thermal Plastic UL 94-0
Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
Insulation Resistance: 10MΩ Or Over With a DC250V Megger
Dielectric Withstand Voltage: AC500V 1S
Allowable Ambient Temperature Range: -10℃～+70℃(Operating) -40℃～+70℃(Storage)
Specifications: (unit: mm)
| Model | Bearing Type |
Rated Voltage |
Operation Voltage |
Current | Speed | Air Flow |
Static Pressure |
Noise Level |
Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| ZBH2008S | Sleeve | 5 | 4.5～5.5 | 0.22 | 14000 | 0.98 | 7.84 | 30.10 | 4 |
| ZBM2008S | 0.17 | 11000 | 0.77 | 4.84 | 27.76 | ||||
| ZBL2008S | 0.12 | 9000 | 0.63 | 3.24 | 23.41 |

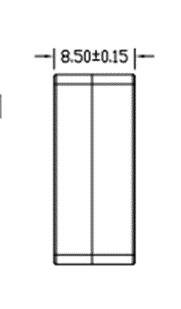

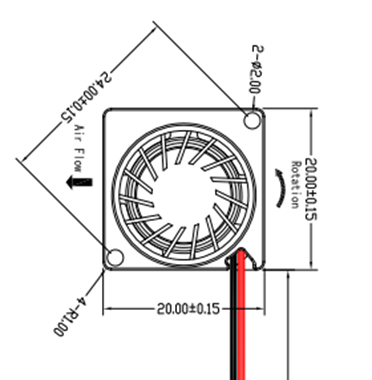

● Dimensions Drawing
● Characteristic Curves
