DC Axial-Flow Fan Motor
Material: Frame And Impeller:Thermal Plastic UL 94-0
Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
Insulation Resistance: 10MΩ Or Over With a DC250V Megger
Dielectric Withstand Voltage: AC500V 1S
Allowable Ambient Temperature Range: -10℃～+70℃(Operating) -40℃～+70℃(Storage)
Specifications: (unit: mm)
| Model | Bearing Type | Rated Voltage | Operation Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| ZDH2006S | Sleeve | 5 | 4.5～5.5 | 0.22 | 15000 | 1.41 | 5.22 | 33.65 | 4 |
| ZDM2006S | 0.17 | 12000 | 1.02 | 3.69 | 26.87 | ||||
| ZDL2006S | 0.12 | 9000 | 0.77 | 2.02 | 20.34 |

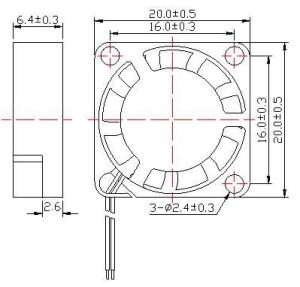

● Dimensions Drawing
● Characteristic Curves
| Material | Frame And Impeller:Thermal Plastic UL 94-0 |
|---|---|
| Lead Wires | UL Type |
| Insulation Resistance | 10MΩ Or Over With a DC250V Megger |
| Dielectric Withstand Voltage | AC500V 1S |
| Allowable Ambient Temperature Range | -10℃～+70℃(Operating) |
