Specifications: (unit: mm)
| Model | Bearing Type |
Rated Voltage |
Operation Voltage |
Current | Speed | Air Flow |
Static Pressure |
Noise Level |
Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| ZDD20060B | Ball | 24 | 21.6～26.4 | 2.00 | 2800 | 595.00 | 65.00 | 74.4 | 1520 |
| ZDH20060B | 1.50 | 2500 | 631.00 | 58.20 | 67.0 | ||||
| ZDM20060B | 1.00 | 2200 | 467.00 | 51.50 | 55.8 | ||||
| ZDL20060B | 0.70 | 2000 | 425.00 | 46.40 | 46.5 | ||||
| ZDD20060B | 48 | 43.2～52.8 | 1.10 | 2800 | 595.00 | 65.00 | 74.4 | ||
| ZDH20060B | 0.80 | 2500 | 631.00 | 58.20 | 67.0 | ||||
| ZDM20060B | 0.60 | 2200 | 467.00 | 51.50 | 55.8 | ||||
| ZDL20060B | 0.40 | 2000 | 425.00 | 46.40 | 46.5 |
● Dimensions Drawing

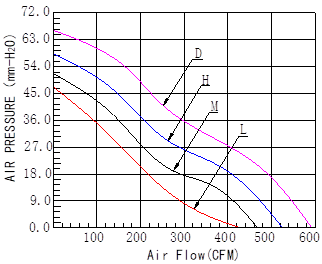

● Characteristic Curves
