17251

17051A1

170X170X51-AC

AC Axial-Flow Fan Motor
● General Specifications
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a DC500V Megger
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)

Description
Reviews (0)

Specifications: (unit: mm)

Model	Bearing Type	Rated Voltage	Fre- quency	Current	Power	Speed	Noise Level	Air Flow		Static Pressure	Weight
Model	Bearing Type	VDC	Hz	A	W	RPM	dBA	M³/hr	CFM	mmH₂0	g
ZAH1751S	Sleeve	220-240	50/60	0.40	47/41	2700/3000	51/55	272/306	160/180	11.3/13	880
ZAM1751S		220-240	50/60	0.30	28/27	2500/2700	49/51	252/272	148/160	9.9/7.0
ZAL1751S		220-240	50/60	0.20	20/20	2200/2400	45/47	233/240	137/141	3.4/4.6
ZAH1751S		100-125	50/60	0.60	47/41	2700/3000	51/55	272/306	160/180	11.3/13
ZAM1751S		100-125	50/60	0.50	28/27	2500/2700	49/51	252/272	148/160	9.9/7.0
ZAL1751S		100-125	50/60	0.40	20/20	2000/2400	45/47	233/240	137/141	3.4/4.6
ZAH1751S	Ball	220-240	50/60	0.40	47/41	2700/3000	51/55	272/306	160/180	11.3/13
ZAM1751S		220-240	50/60	0.30	28/27	2500/2700	49/51	252/272	148/160	9.9/7.0
ZAL1751S		220-240	50/60	0.20	20/20	2200/2400	45/47	233/240	137/141	3.4/4.6
ZAH1751S		100-125	50/60	0.60	47/41	2700/3000	51/55	272/306	160/180	11.3/13
ZAM1751S		100-125	50/60	0.50	28/27	2500/2700	49/51	252/272	148/160	9.9/7.0
ZAL1751S		100-125	50/60	0.40	20/20	2000/2400	45/47	233/240	137/141	3.4/4.6

● Dimensions Drawing

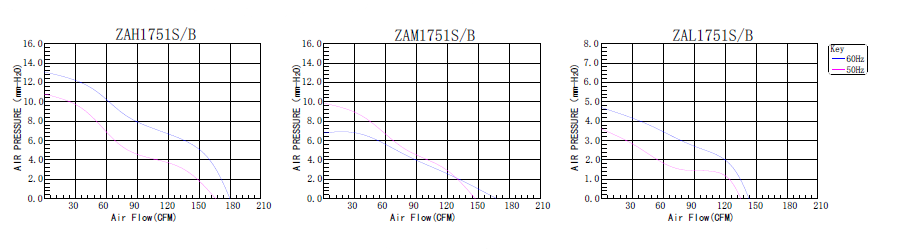

● Characteristic Curves
