Specifications: (unit: mm)
| Model | Bearing Type |
Rated Voltage |
Operation Voltage |
Current | Speed | Air Flow |
Static Pressure |
Noise Level |
Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| ZDD17051B | Ball | 24 | 21.6～26.4 | 1.50 | 4000 | 296.00 | 24.04 | 74.4 | 760 |
| ZDH17051B | 1.00 | 3600 | 266.00 | 19.48 | 67.0 | ||||
| ZDM17051B | 0.60 | 3000 | 222.00 | 13.54 | 55.8 | ||||
| ZDL17051B | 0.40 | 2500 | 185.00 | 9.40 | 46.5 | ||||
| ZDD17051B | 48 | 43.2～52.8 | 0.80 | 4000 | 296.00 | 24.04 | 74.4 | ||
| ZDH17051B | 0.60 | 3600 | 266.00 | 19.48 | 67.0 | ||||
| ZDM17051B | 0.35 | 3000 | 222.00 | 13.54 | 55.8 | ||||
| ZDL17051B | 0.25 | 2500 | 185.00 | 9.40 | 46.5 |
● Dimensions Drawing

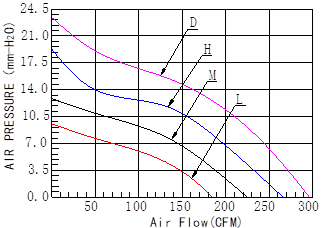

● Characteristic Curves
