120X120X38-AC

AC Axial-Flow Fan Motor
● General Specifications
○ Material:
Impeller: PBT UL 94V-0 Reinforced Plastic
Frame :Aluminium Alloy
○ Lead Wires: UL Type
○ Motor Protection:ImpeSAnce Protect
○ Insulation Resistance:10MΩ Or Over With a DC500V Megger
○ Dielectric Withstand Voltage:AC1500V 3S
○ Allowable Ambient Temperature Range:
-10℃～+70℃(Operating)
-40℃～+70℃(Storage)

Description
Reviews (0)

Specifications: (unit: mm)

Model	Bearing Type	Rated Voltage	Fre- quency	Current	Power	Speed	Noise Level	Air Flow		Static Pressure	Weight
Model	Bearing Type	VDC	Hz	A	W	RPM	dBA	M³/hr	CFM	mmH₂0	g
ZAH1238S	Sleeve	220-240	50/60	0.20	23/20	2600/3000	42/44	134/160	79/94	6.8/8.8	450
ZAM1238S		220-240	50/60	0.16	15/14	2400/2700	40/43	127/141	75/83	5.2/6.5
ZAL1238S		220-240	50/60	0.10	10/9	2000/2400	36/40	104/127	61/75	2.8/4.2
ZAH1238S		100-125	50/60	0.30	23/20	2600/3000	42/44	134/160	79/74	6.8/8.8
ZAM1238S		100-125	50/60	0.25	15/14	2400/2700	40/43	127/141	75/83	5.2/6.5
ZAL1238S		100-125	50/60	0.20	10/9	2000/2400	36/40	104/127	61/75	2.8/4.2
ZAH1238S	Ball	220-240	50/60	0.20	23/20	2600/3000	42/44	134/160	79/94	6.8/8.8
ZAM1238S		220-240	50/60	0.16	15/14	2400/2700	40/43	127/141	75/83	5.2/6.5
ZAL1238S		220-240	50/60	0.10	10/9	2000/2400	36/40	104/127	61/75	2.8/4.2
ZAH1238S		100-125	50/60	0.30	23/20	2600/3000	42/44	134/160	79/74	6.8/8.8
ZAM1238S		100-125	50/60	0.25	15/14	2400/2700	40/43	127/141	75/83	5.2/6.5
ZAL1238S		100-125	50/60	0.20	10/9	2000/2400	36/40	104/127	61/75	2.8/4.2

● Dimensions Drawing

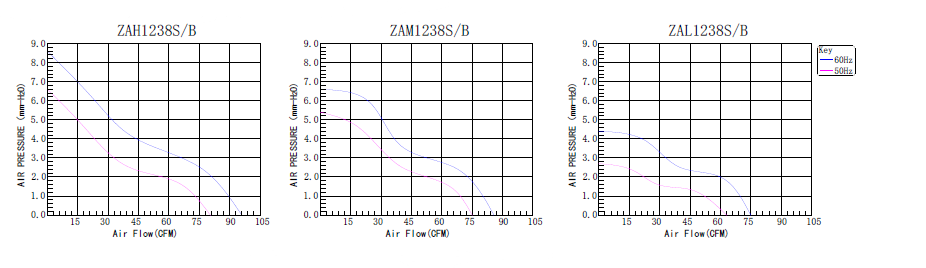

● Characteristic Curves
