Blower
Material: Frame And Impeller:Thermal Plastic UL 94-0
Lead Wires:UL Type
RED Wire Positive（+）
Black Wire Negative(-)
Insulation Resistance: 10MΩ Or Over With a DC250V Megger
Dielectric Withstand Voltage: AC500V 1S
Allowable Ambient Temperature Range:-10℃～+70℃(Operating) -40℃～+70℃(Storage)
Specifications:(unit: mm)
| Model | Bearing Type |
Rated Voltage |
Operation Voltage |
Current | Speed | Air Flow |
Static Pressure |
Noise Level |
Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| ZBH1025B | Ball | 12 | 10.8～13.2 | 0.80 | 4800 | 48.75 | 26.8 | 59.8 | 128 |
| ZBM1025B | 0.50 | 4000 | 40.62 | 22.34 | 49.84 | ||||
| ZBL1025B | 0.30 | 3200 | 32.50 | 17.87 | 39.86 |
● Dimensions Drawing

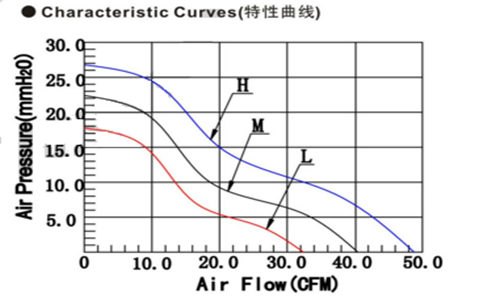

● Characteristic Curves
